PL 6300

3 Printhead - High Resolution
High-Speed, Ultimate Precision & Peak Efficiency

High Resolution

2900 X 2900 X 1700 dpi

Layer Thickness 15 µm

Material Capacity

6.0 Kg Build Material (2 X 3.0 Kg Bottle)

7.2 Kg Support Material (2 X 3.6 Kg Bottle)

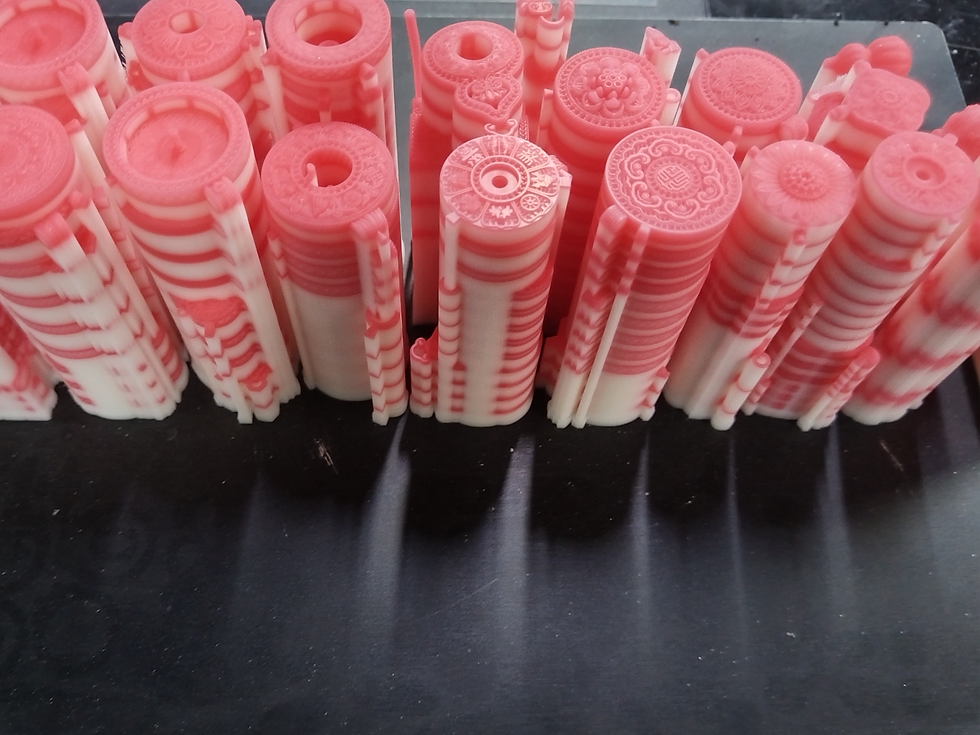

Durable Flexible Wax

Excellent dimensional stability and is ideal for, filigree, chains and complex, high-value casting

24/7 Printing

Unattended & Continuous


3 Printhead

High Printing Speed of 6.35 mm/h

Exceptional Efficiency, High-Volume Production.

Large Build Volume

290 X 207 X 138 mm

User-Friendly Workflow

all-in-one software that simplifies digital jewellery file slicing. composing and printing procedures for beginners.

Easier Post-Processing

Contact-Free Support Removal

High Speed - Professional Wax 3D Printer for Jewellery Manufacturing

The Plempire PL 6300 is a powerful wax 3D printer designed specifically for professional jewellery production, featuring three printheads for increased output. It offers ultra-high precision, a spacious build area, and efficient material usage, enabling fast and dependable manufacturing of detailed wax models. This printer is an excellent choice for jewellery makers and 3D printing services seeking outstanding accuracy, speed, and workflow efficiency.

Equipped with three synchronised printheads using MultiJet Printing (MJP) technology, the PL 6300 achieves quick production speeds without compromising precision—making it ideal for intricate jewellery designs. With a maximum build volume of 290 × 207 × 138 mm and dimensional accuracy of roughly ±0.04 mm per 20 mm, it consistently delivers exact results. Its exceptional resolution (2900×2900×1700 DPI) and fine layer thickness of 15 μm enable the creation of complex, highly accurate jewellery pieces.

High - Throughput

The PL 6300 is a triple printhead wax 3D printer designed for high-speed, simultaneous printing, outperforming single and dual-head models. It produces up to 12 kg of wax monthly, setting a new standard for industrial jewellery pattern manufacturing and offering manufacturers greater productivity and quality.

Faster Than Ever

The PL 6300 wax 3D printer delivers exceptional speed and efficiency, printing at up to 6.35 mm per hour and completing a layer in just 8.2 seconds. As one of the fastest wax 3D printers, it is ideal for rapid, high-volume production environments, especially jewellery manufacturing. Its blend of speed and flexibility streamlines workflows and boosts productivity.

Stronger, Flexible, Smooth Models

The PL 6300 uses Plempire's patented Multi Jet Printing (MJP) technology to deliver high-resolution prints and smoother surfaces for jewellery production. This reduces post-processing time by 25%–33%, cutting labour costs and accelerating production for a competitive advantage in high-volume manufacturing.

Technical Information

Printer Technical Information

Printing Technology

MultiJet Printing (MJP)

Build Volume

290 X 207 X 138 mm

Printing Mode

QHD: 2900 X 2900 X 1700 DPl

Layer Thickness:

 15 um

Dimensional Accuracy

±0.04mm / 20mm

Power supply

AC 220-240v, 50 / 60 Hz 23A

Machine Dimensions

1310 X 770 X 1670 mm

Net Weight

486 kg

Gross Weight (with crate)

673 kg

Crate Size

1650 X 1000 X 1880 mm

Slicing Software

PL3DPrint

Supported File Format

STL, SLC, OBJ

Email Notification

√

Hard Disk Capacity

500 Giga

Connectivity

RJ-45/UsB

Supported Operating System

Windows 7, 10 (64bit), 11 (64bit)

Working Environment

18-26°C; humidity: 30-70%

Material Properties

Material Name

YHK-630

YHK-130

-

Description

 Casting Wax

 Soluble Wax

-

Material Type

Part

Support

-

Net Weight

3.0 kg/bottle

3.6 kg/bottle

-

Composition

100% Wax

100% Wax

-

Colour

Red

White

-

Density @ 95°C (Liquid)

0.811 g/ml

0.85g/ml

-

Melting Point

68℃

55℃

-

Softening Point

63℃

-

-

Volumetric Shrinkage

1.18%

-

-

Linear Shrinkage

0.52%

-

-

Needle Penetration Hardness

7.2

-

-

Ash Content

<0.019%

-

-
