PL 3000

3 Printhead - 2 Mode Printing
Increase Your Production Volume by 280%

High Resolution - 2 Print Settings

XHD: 1200 X 1200 X 1600 dpi (16 µm Layers)

ZHD: 1200 X 1200 X 3200 dpi (8 µm Layers)

Material Capacity

6.0 Kg Build Material (2 X 3.0 Kg Bottle)

7.2 Kg Support Material (2 X 3.6 Kg Bottle)

2 Options of Wax Part Material

Excellent dimensional stability and is ideal for, jewellery & industrial applications.

24/7 Printing

Unattended & Continuous

3 Printhead

High Printing Speed of 6.35 mm/h

Exceptional Efficiency, High-Volume Production.

Large Build Volume

294 X 212 X 150 mm

User-Friendly Workflow

all-in-one software that simplifies digital jewellery file slicing. composing and printing procedures for beginners.

Easier Post-Processing

Contact-Free Support Removal

Professional Wax 3D Printing for Jewellery & Industrial Applications

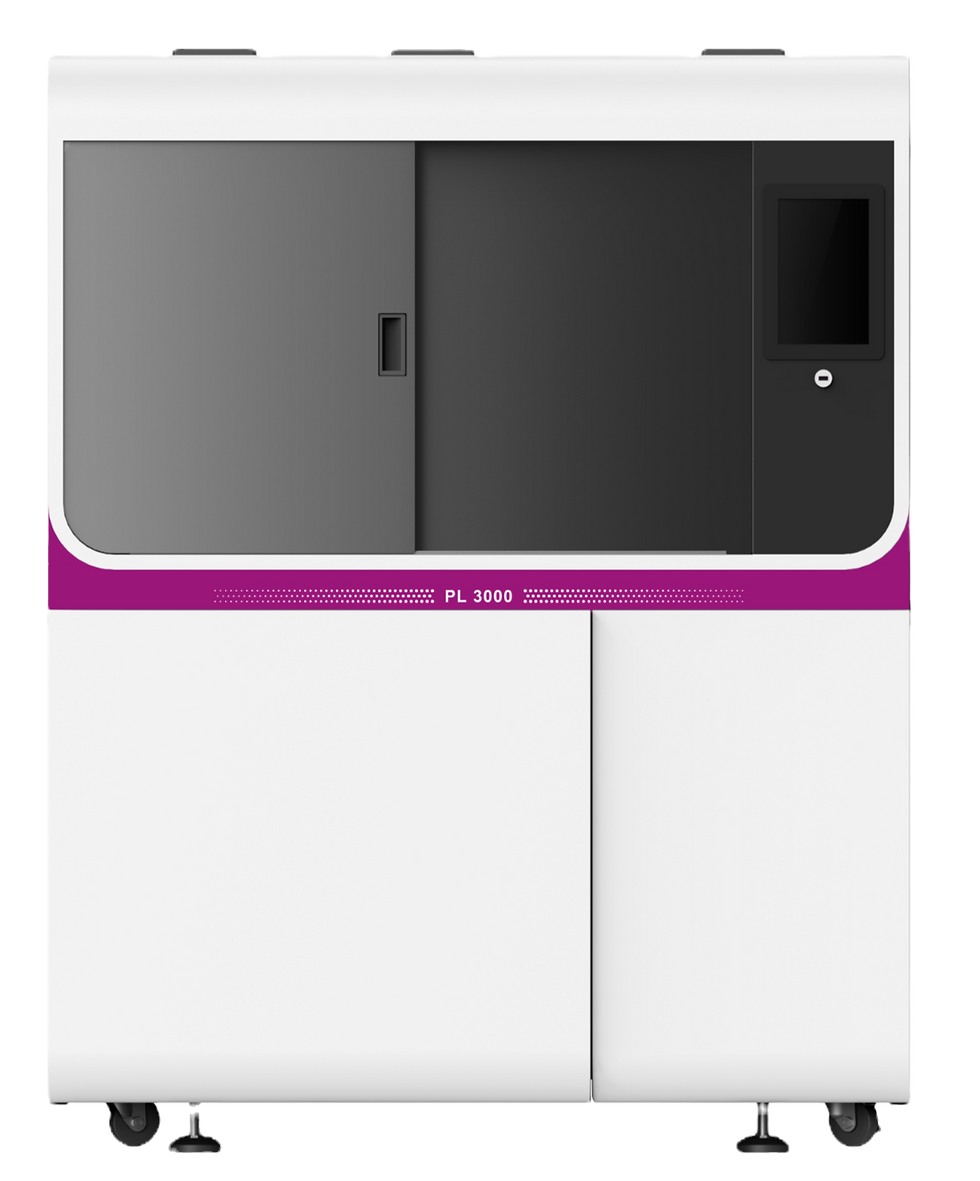

The Plempire PL 3000 is an advanced 3D printer engineered for precise wax modelling, making it well-suited for applications in jewellery design and industrial prototyping. It employs state-of-the-art jetting technology to produce highly detailed and smooth wax patterns suitable for lost-wax casting processes. The PL 3000 is recognised for its reliability and efficient performance, enabling designers to fabricate complex geometries and fine features with impressive accuracy, thereby streamlining workflows and reducing production times.

Offering exceptional performance, the Plempire PL 3000 is ideal for both professionals and enthusiasts. Its durable construction and user-friendly interface facilitate seamless operation, while its sophisticated capabilities distinguish it from competing models. Renowned for versatility and efficiency, the PL 3000’s dependable performance not only optimises workflow but also minimises production time, making it a valuable asset for those seeking precision and productivity in modelling tasks.

High - Throughput

The PL 3000 is a triple printhead wax 3D printer designed for high-speed, simultaneous three-head printing. This allows it to outperform single or dual-head printers with faster, more efficient output. It can print in 16 µm and 8 µm layer modes, making it suitable for industrial and jewellery pattern production. The PL 3000 is ideal for manufacturers aiming to boost productivity while maintaining quality.

Faster Than Ever

The PL 3000 wax 3D printer delivers exceptional speed and efficiency, printing at up to 6.35 mm per hour with each layer completed in just 8.2 seconds. Its rapid performance makes it ideal for manufacturers needing high-volume output, quality, and precision, especially in jewellery and industrial sectors seeking greater productivity.

Stronger & Flexible Models

The PL 3000 uses Plempire's patented Multi Jet Printing (MJP) technology for high-resolution prints and smooth surfaces. It supports two wax materials, making it suitable for both large parts and jewellery, especially with YHK-803R red flexible wax. Its refined output reduces post-processing, saving manufacturers time and labour costs.

Technical Information

Printer Technical Information

Printing Technology

MultiJet Printing (MJP)

Build Volume

294 X 212 X 150 mm

Printing Mode - XHD

1200 X 1200 X 1600 DPl

Printing Mode - ZHD

1200 X 1200 X 3200 DPl

Layer Thickness:

16 um (XHD) / 8 um (ZHD)

Dimensional Accuracy

±0.04mm / 20mm

Power supply

AC 220-240v, 50 / 60 Hz 23A

Machine Dimensions

1310 X 770 X 1670 mm

Net Weight

480 kg

Gross Weight (with crate)

630 kg

Crate Size

1650 X 1000 X 1880 mm

Slicing Software

PL3DPrint

Supported File Format

STL, SLC, OBJ

Email Notification

√

Hard Disk Capacity

500 Giga

Connectivity

RJ-45/UsB

Supported Operating System

Windows 7, 10 (64bit), 11 (64bit)

Working Environment

18-26°C; humidity: 30-70%

Material Properties

Material Name

YHK-803R

YHK-603

YHK-103

Description

Casting Wax

Soluble Wax

Material Type

Part

part

Support

Net Weight

3.0 kg/bottle

3.6 kg/bottle

Composition

100% Wax

Colour

Red

Purple

White

Density @ 95°C (Liquid)

0.811 g/ml

0.85g/ml

Melting Point

68℃

55℃

Softening Point

63℃

Volumetric Shrinkage

1.18%

Linear Shrinkage

0.52%

Needle Penetration Hardness

7.2

Ash Content

<0.019%
